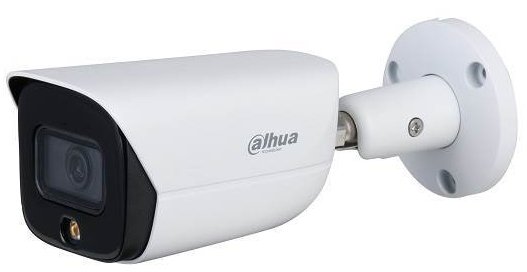

Κάμερα Ασφαλείας Bullet Dahua IPC-HFW3549E-AS-LED-0280B
Εξωτερικού χώρου IP67 Bullet - 5 Megapixel
IPC-HFW3549E-AS-LED-0280B Τεχνολογίας Wiz Sense
2.8 mm lens - Max. IR LEDs length 30m
IPC-HFW3549E-AS-LED-0280B Bullet Camera Dahua
| ΤΥΠΟΣ | BULLET |
| ΣΕΙΡΑ | WizSense |
| ΑΝΑΛΥΣΗ | 5.0 MP |
| ΣΥΜΠΙΕΣΗ | H.264 H.264+ H.265 H.265+ |
| ΑΙΣΘΗΤΗΡΑΣ | 1/2.7” PROGRESSIVE CMOS |
| ΦΑΚΟΣ | 2.8 MM |
| ΜΟΙΡΕΣ ΦΑΚΟΥ | 98 |
| LED ΕΜΒΕΛΕΙΑ | 30 M |
| ΣΩΜΑ | ΑΛΟΥΜΙΝΙΟ |
| ΔΕΙΚΤΗΣ ΣΤΕΓΑΝΟΤΗΤΑΣ | IP 67 |
| TRUE WDR | 120 DB |
| STARLIGHT | FULL COLOR |
| AUDIO IN / OUT | 1 / 1 + ΜΙΚΡΟΦΩΝΟ |
| ALARM IN / OUT | 1 / 1 |
| ΤΡΟΦΟΔΟΣΙΑ | DC12V POE(802.3AF) |
| MICRO SD ΚΑΡΤΑ | 256GB |
IPC-HFW3549E-AS-LED-0280B Dahua
Features
- 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592 x 1944) @20 fps, and supports 4MP (2688 x 1520) @25/30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in warm light, max. illumination distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection]
- Alarm: 1 in, 1 out; Audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
- 12V DC/PoE power supply, easy for installation
- IP67 protection
- SMD Plus
IPC-HFW3549E-AS-LED
Technical Specification
| Camera | |
| Image Sensor | 1/2.7”5Megapixel progressive CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 Lux @F1.0 |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.4 ft) (Warm light) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| IPC-HFW3549E-AS-LED | |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129° |
| 3.6 mm: Horizontal 77° × Vertical 56° × Diagonal 101° | |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 1.2 m (3.9 ft) |
| 3.6 mm: 2.4 m (7.9 ft) | |
| Video Bit Rate | H.264: 3 kbps–8192 kbps |
| H.265: 3 kbps–8192 kbps | |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| IPC-HFW3549E-AS-LED-0280B | Bullet Camera Dahua |
| Scene Self-adaptation | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | Yes |
| Built-in MIC | |
| Audio Compression | G.711a; G.711Mu; G726; AAC |
| IPC-HFW3549E-AS-LED | |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8, IE9, IE11 |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| IPC-HFW3549E-AS-LED-0280B Dahua | |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| Power | |
| Power Supply | 12V DC/PoE |
| Power Consumption | < 8.4W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Ingress Protection | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 192.7 mm × 70.5 mm × 66.4 mm |
| (7.6" × 2.8"× 2.6") (L × W × H) | |
| Net Weight | 590 g (1.3 lb) |
| Gross Weight | 780 g (1.7 lb) |
IPC-HFW3549E-AS-LED
Περισσότερα τεχνικά χαρακτηριστικά για την κάμερα IPC-HFW3549E-AS-LED-028 Dahua εδώ
Περισσότερες πληροφορίες για την τεχνομογία WinSense εδώ
Dahua Tιμή Λιανικής
Τιμή προσφοράς Internet θα βρείτε στο συνοπτικό τιμοκατάλογο για κάμερες εδώ
