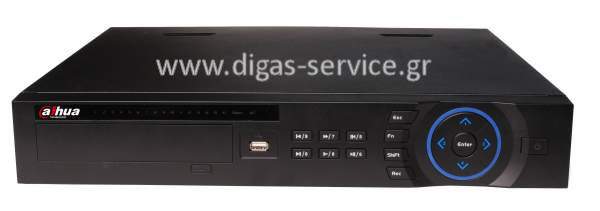

DVR - Dahua HCVR7404L

Τρι-υβριδικό Καταγραφικό - Τεχνολογίας HDCVI

Tribrid: 4ch - Each channel supports HDCVI / Analog / IP Video input

All channel 1080P realtime recording

Κωδικός Προϊόντος Μ589-183

Model    Dahua DH-HCVR7404L

• Tribrid: Each channel supports HDCVI / Analog / IP Video input
• 1HDMI/VGA/TV simultaneous video output,1 HDMI separate output
• All channel 1080P realtime recording
• H.264 dual-stream video compression
• 4 channel synchronous realtime

• System
• Main Processor    Embedded processor
• Operating System    Embedded LINUX

• Video
• Input    4 channel
• Video Standard    HDCVI    1080P/720P HDCVI Camera
•     Analog    NTSC/PAL
•     IP    All channels support 1080P/720P IP Camera

• Audio
• Input    4 channel, BNC
• Output    1 channel, BNC
• Two-way Talk    1 channel input,1channel output, BNC

• Display
• Interface    2 HDMI,1 VGA,1 TV
• Resolution    1920×1080, 1280×1024, 1280×720, 1024×768
• Display Split    1/4
• Privacy Masking    4 rectangular zones (each camera)
• OSD    Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Recording
• Video/Audio Compression    H.264/G.711
• Resolution    1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/
• 4CIF(704×576/704×480) /CIF(352×288/352×240)/QCIF(176×144/176×120)
• Record Rate    Main Stream:    1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
•     Extra Stream    CIF/QCIF(1~25/30fps)
• Bit Rate    48~6144Kb/s
• Record Mode    Manual, Schedule(Regular(Continuous), MD), Stop
• Record Interval    1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
• Video Detection & Alarm
• Trigger Events    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot,
• Buzzer & Screen tips
• Video Detection    Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
• Alarm Input    4 channel
• Relay Output    6 channel
• Playback & Backup
• Sync Playback    1/4
• Search Mode    Time/Date, MD & Exact search (accurate to second)
• Playback Functions    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera,
• Full screen, Repeat, Shuffle, Backup selection, Digital zoom
• Backup Mode    USB Device/eSATA Device/Internal SATA burner/Network
• Network
• Ethernet    RJ-45 port (10/100M/1000M)
• Network Functions    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
• Max. User Access    128 users
• Smart Phone    iPhone, iPad, Android, Windows Phone
• Storage
• Internal HDD    4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), up to 16TB, Raid(redundancy)
• External HDD    1 eSATA port
• Auxiliary Interface
• USB Interface    3 ports(2 Rear),USB2.0
• RS232    1 port, For PC communication & Keyboard
• RS485    1 port RS485 for PTZ control,1 port RS422 for Keyboard
• General
• Power Supply    AC 100~240 V, 50/60 Hz
• Power Consumption    40W(without HDD)
• Working Environment    -10°C ~+55°C / 10%~90%RH / 86~106kpa
• Dimension(W×D×H)    1.5U, 440mm×416mm×68mm
• Weight    6KG(without HDD)

Dahua Tιμή Λιανικής και Dahua Τιμή προσφοράς Internet θα βρείτε στο συνοπτικό τιμοκατάλογο για dahua dvr εδώ

Κωδικός Προϊόντος Μ589-183
